1. Shell material: ABS 2. Module:JM_MLX90640_CSB
3. Use the MLX90640ESF_BAB infrared sensor
4. Resolution: 32x24
5. Temperature measurement range: -40~300℃
6. Measurement accuracy: +/-2℃ (central area, 0~100℃)
7. Operating temperature: 10℃~50℃
8. Operating humidity: 70%
9. Refresh rate: 8Hz
10. No calibration required
11. Field of view: 55x35 degrees
12. Power port: USB Type-C 5V/1A
13. Photo-taking (can save 90 photos, can be connected to a computer, can copy and delete)
14. Rechargeable battery (200 milliampere)
15. TFT size: 1.8 inches (display resolution: 160x128)
16. Product size: 66x46x20mm
17. Packaging list:
- Thermal imager x 1
- Screen cleaning cloth x 1 - USB Type-C x 1

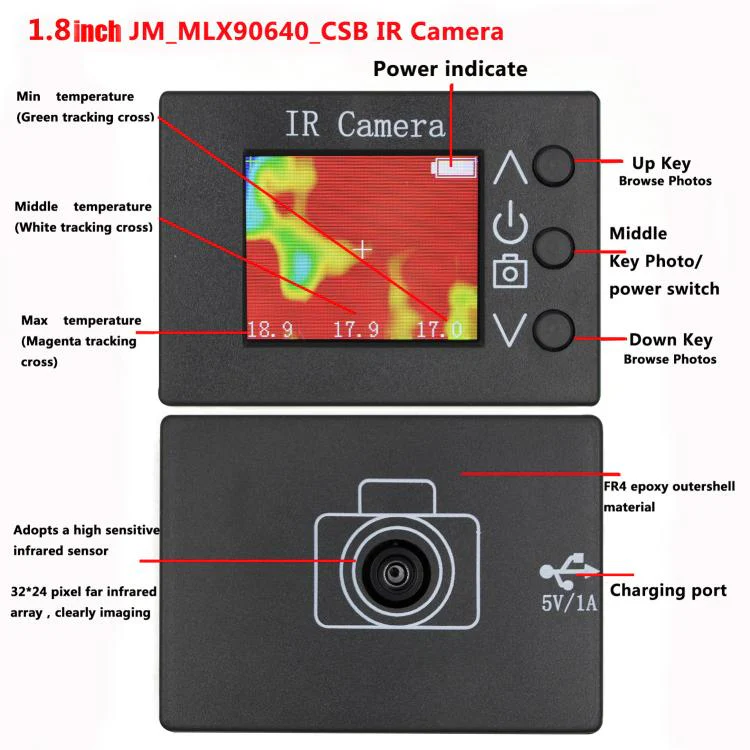

Operation Instructions
1. Turn on/Off: press and hold the middle button.
2. Take a photo: press the middle button.
3. View photos: press the up or down button.
4. Exit photos: press and hold the up or down button.
5. Copy photos: connect the computer with a USB cable. The computer will receive a disk.
6. Note: do not modify the photos on the disk or insert other files into the disk. Before connecting the computer, make sure to fully charge it and turn it off.

Applications:
- High-precision non-contact temperature measurement
- Security and intrusion detection
- Body temperature measurement
- Temperature control in intelligent building environments
- Air conditioning control in vehicles
- Temperature detection and control of microwave ovens and ovens
- Temperature monitoring of industrial parts
- Visual temperature sensors
- Leak detection and maintenance of floor heating systems
- Thermal detection of circuit boards and components
